SERVER / WORK STATION SOLUTION

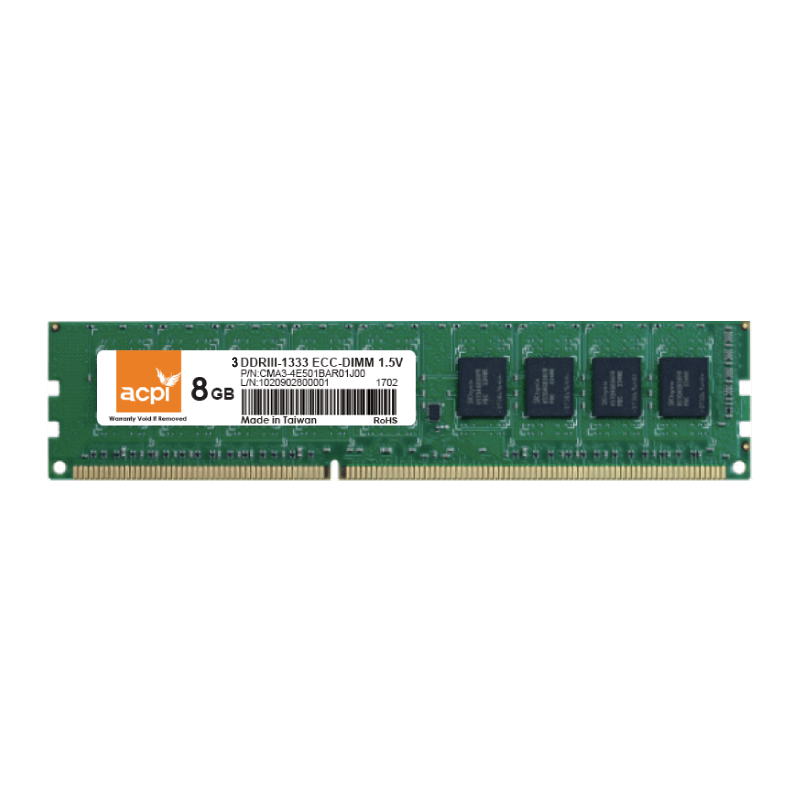

Unbuffered DIMM w/ ECC

Type	Speed	Pin	Density	I/O Width	Operating Voltage	PCB Height
DDR3	800~1866 MT/s	240	1GB~8GB	72bit	1.5V / 1.35V	30.00mm
DDR4	2133~3200 MT/s	288	2GB~32GB	72bit	1.2V (1.14V~1.26V)	31.25mm
DDR5	4800~5600 MT/s	288	8GB~48GB	72bit	1.1V (1.067V~1.167V)	31.25mm

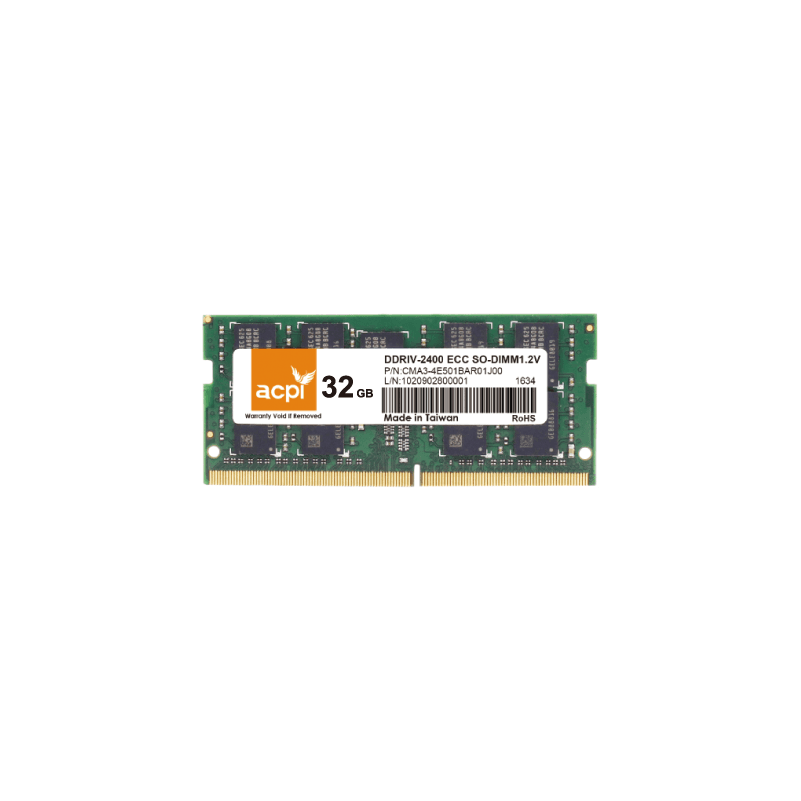

Unbuffered SO-DIMM w/ ECC

Type	Speed	Pin	Density	I/O Width	Operating Voltage	PCB Height
DDR3	800~1866 MT/s	204	1GB~8GB	72bit	1.5V / 1.35V	30.00mm
DDR4	2133~3200 MT/s	260	2GB~32GB	72bit	1.2V (1.14V~1.26V)	31.25mm
DDR5	4800~5600 MT/s	262	8GB~48GB	72bit	1.1V (1.067V~1.167V)	31.25mm

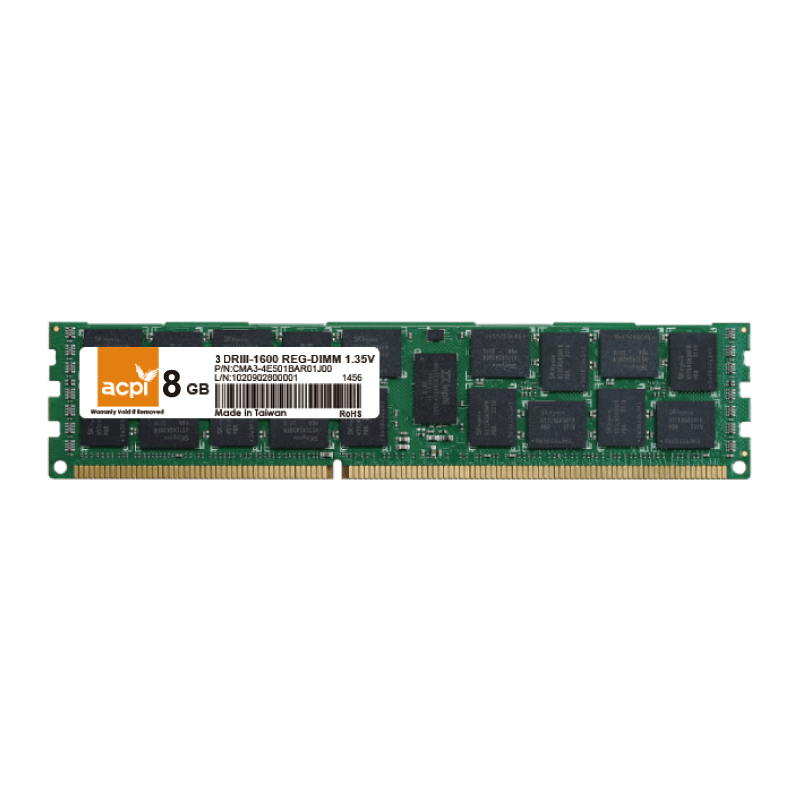

Registered DIMM w/ ECC

Type	Speed	Pin	Density	I/O Width	Operating Voltage	PCB Height
DDR3	800~1866 MT/s	240	1GB~8GB	72bit	1.5V / 1.35V	31.25mm
DDR4	2133~3200 MT/s	288	2GB~32GB	72bit	1.2V (1.14V~1.26V)	31.25mm
DDR5	4800~5600 MT/s	288	8GB~48GB	72bit	1.1V (1.067V~1.167V)	31.25mm
