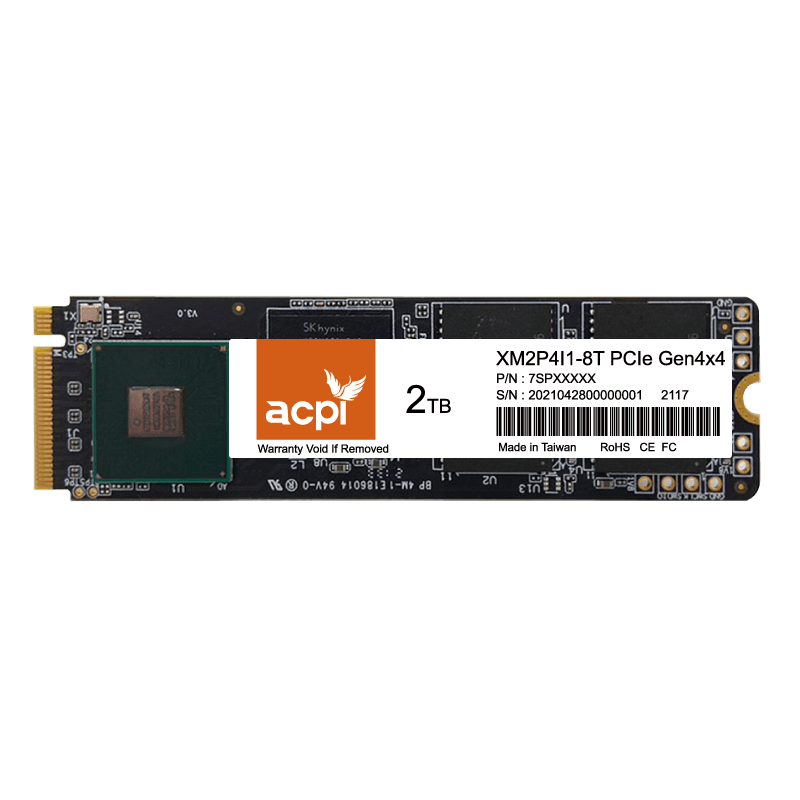

XM2P4I1-8T
XM2P4I1-8T
Features
- PCle Gen 4 16Gb/s interface with up to 4 lanes
- Compliant with PCle Base Specification Revision 4.0
- Advanced flash management, including wear-leveling, bad block management, and over-provisioning
- Supports Ad min and NVM Command Sets
Specifications
NAND Flash Type3D TLC
InterfacePCI Express Gen4 x4
Connector TypePCle
Capacity1TB ~ 2TB
Bytes per Sector512 Byte
Sequential R/W Performance (Max.)7400/6700 MB/s
Operating Temp.NT: 0°C~70°C
Dimension (LxWxH)42.0x22.0x3.8mm
Warranty3 Years (Limited)
Vibration (Operating)3.1 Grms peak, 2 ~ 500Hz
