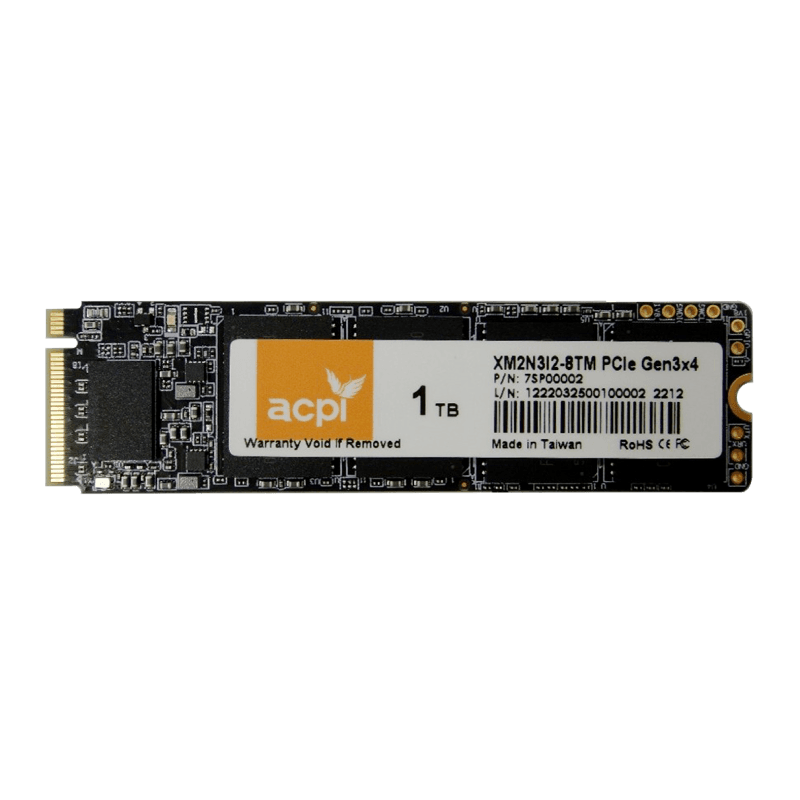

XM2N3I2-8TM
XM2N3I2-8TM
Features
- PCle Gen 3 8Gb/s Interface, up to 4 lanes
- Compliant with NVMe Express specification Rev.1.3
- Power Saving Modes
- Supports APST
- Supports L 1.2 Mode
- Supports Admin & NVM Command Set
Specifications
NAND Flash Type3D TLC
InterfacePCI Express Gen3 x4
Connector TypeM.2 Module notch M
Capacity256GB ~ 1TB
Sequential R/W Performance (Max.)3300/2700 MB/s
External DRAM CacheNo
Operating Temp.NT: 0°C~70°C
Dimension (LxWxH)80.0x22.0x3.8mm
Warranty3 Years (Limited)
Vibration (Operating)20G (7 ~ 2K, 3Xes)
Power Shield-
Write Protection-
