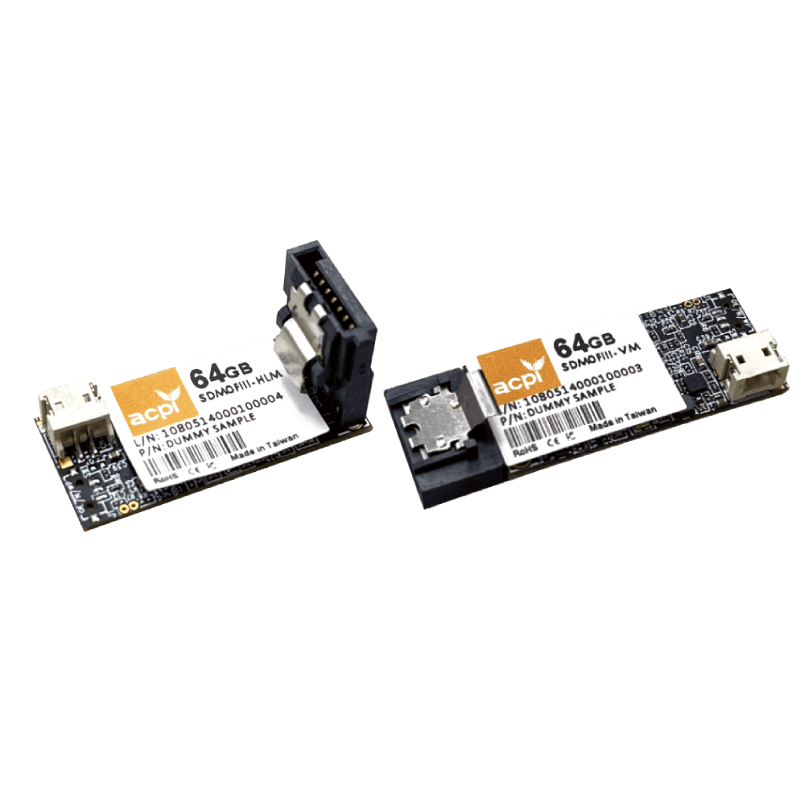

SDM0F
SDM0F
Features
- Supports Write Protection
- Supports SATA Revision 3.1
- Supports data quick erase
- Backward compatible with SATA 1 (1.SGb/s) and SATA2 (3Gb/s) interface
- Supports S.M.A.R.T. & Trim command
Specifications
InterfaceSATAIII 6.0 Gb/s
Connector TypeSATA (7 pin)
CapacitySLC: 4GB-32GB / MLC: 8GB-64GB / pSLC: 4GB-32GB
Sequential R/W Performance (Max.)349/101 MB/s
Operating Temp.WT: -40°C-85°C, NT: 0°C-70°C
TRIMYes
S.M.A.R.T. (Heath Monitor)Yes
MTBF2,000,000hrs
Vibration (Operating)20G Peak, 7-2000Hz
Shock1 S00G, 0.Sms
Dimension (LxWxH)V: 41 .06x22.90x5.98mm / HL/HR: 32.00x23.00x16.61 mm
WarrantySLC: 5 Years (Limited) / MLC / pSLC: 3 Years (Limited)
Power Consumption (Max.)1.25W
Power ShieldNo
Write ProtectionYes
