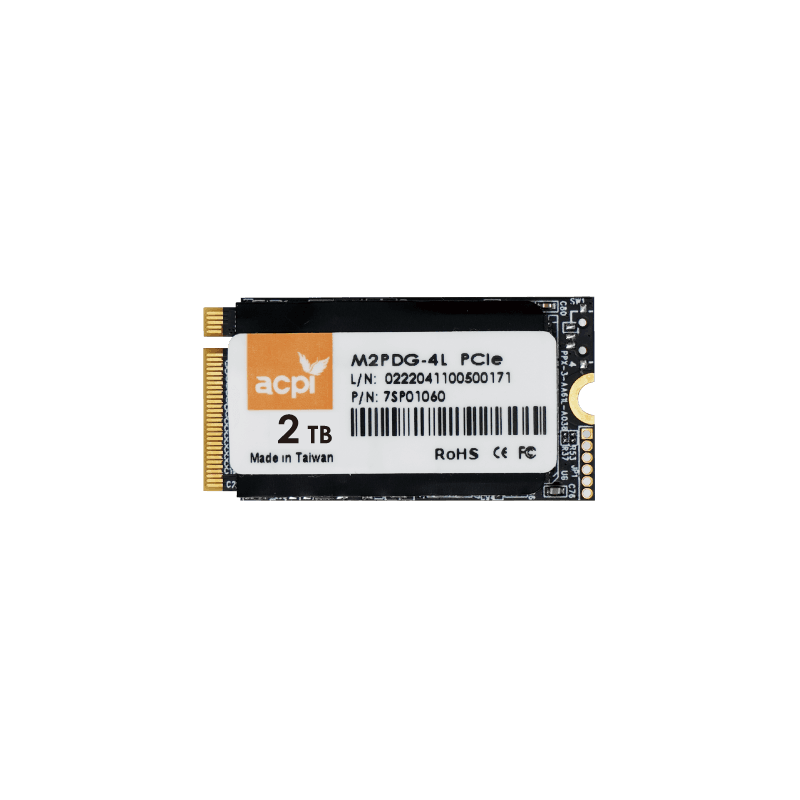

M2PDG-4L
M2PDG-4L
Features
- PCle Gen4 (16Gb/s) x4 lane with L 1.2 support
- Compliant with PCle Express Revision 4.0 NVMe 1.4 register interface and sanitize command supported
- Innovative 4K LDPC engine provides optimized error correction capacity
- Built-in AES-128/256 Encryption and TCG Opal compliant (optional)
- Supports Bad Blocks Management
- Supports Global Wear-leveling
- Thermal throttling is supported with configurable temperature
Specifications
NAND Flash Type3D TLC
InterfacePCI Express Gen4 x4
Connector TypeM.2 Module notch M
Capacity256GB ~ 2TB
Bytes per Sector512 Byte
Sequential R/W Performance (Max.)5250/4710 MB/s
Operating Temp.NT: 0°C~70°C
Dimension (LxWxH)42.0x22.0x3.8mm
Warranty3 Years (Limited)
Vibration (Operating)20G (7 ~ 2K, 3Xes)
Power ShieldNo
Write ProtectionNo
