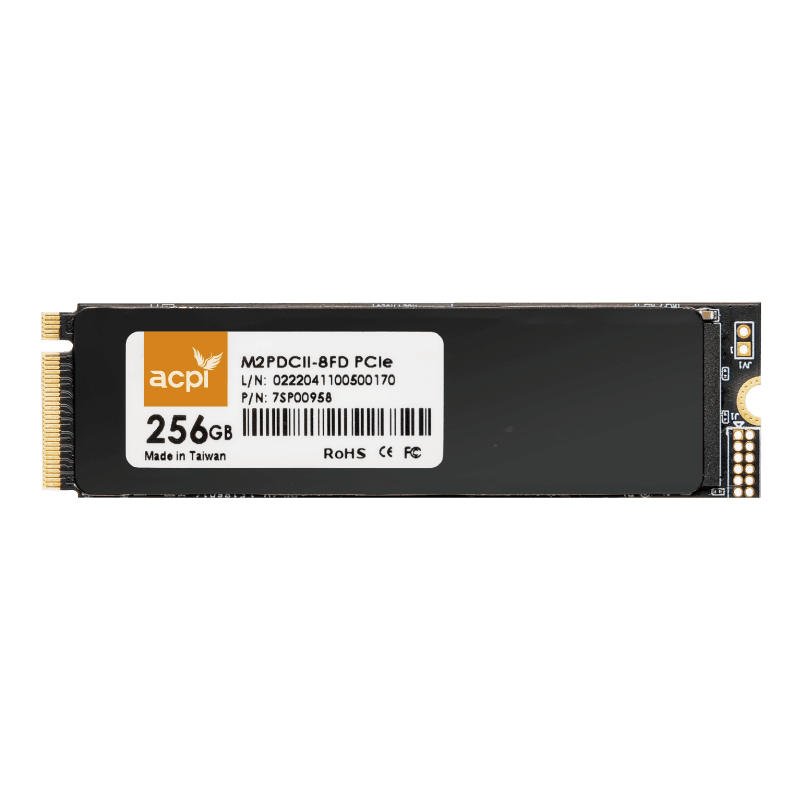

M2PDCII
M2PDCII
Features
- PCle Gen3 (8Gb/s) x4 lane with L 1.2 support
- Compliant Q PCle 3.1
- NVMe 1.3 register interface and command set
- Performance-optimized LDPC engine provides maximum error correction capability for 3D TLC
- SECDED2 SRAM ECC error handling and prevention on major memory buffers
- RAID engine provides multi-page protection for NAND flash data
- Programmable driving strength fits different types of NAND configurations
Specifications
NAND Flash Type3D TLC
InterfacePCI Express Gen3 x4
Connector TypeM.2 Module notch M
Capacity128GB ~ 1TB
Sequential R/W Performance (Max.)1926/1777 MB/s
Operating Temp.WT: -40°C ~ 85°C, NT: 0°C~70°C
Dimension (LxWxH)80.0x22.0x3.8mm
Warranty3 Years (Limited)
Vibration (Operating)20G Peak, 7 ~ 2000Hz
Power Shield-
Write Protection-
