ACPI Technology

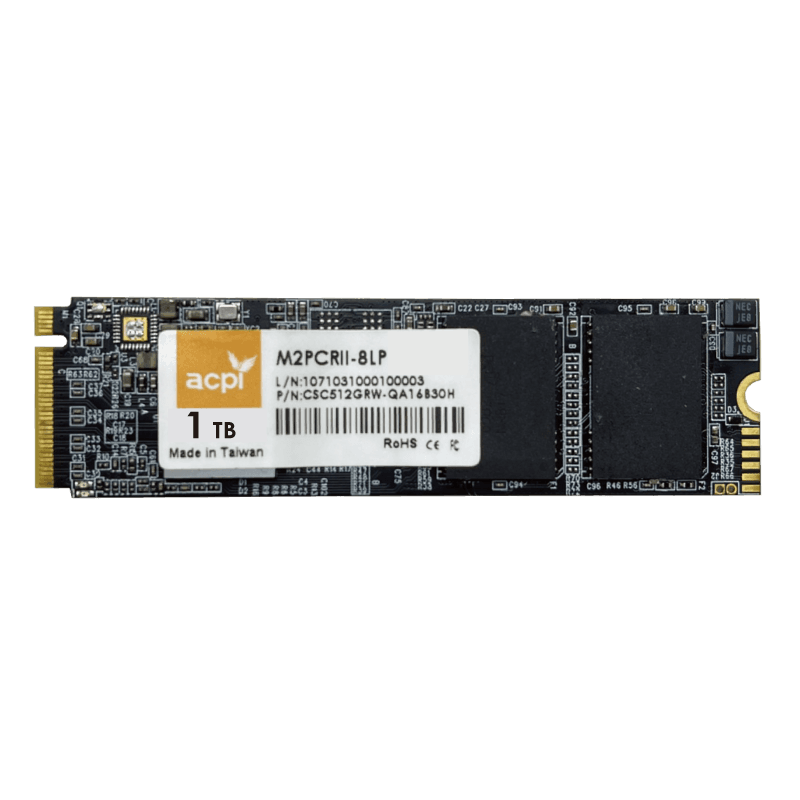

M2PCRII-8
M2PCRII-8

M2PCRII-8

Features

  • Supports real-time Full Disk Encryption (FDE) with Advanced Encryption Standard (AES)
  • Supports Advanced LDPC (Low-Density Parity-Check) error correction technology for improved data accuracy and reliability
  • RAID engine provides multi-page protection for NAND flash data
  • Programmable driving strength to fit different types of NAND configurations

Specifications

NAND Flash Type3D TLC
InterfacePCle
Capacity64GB ~ 1TB
Sequential R/W Performance (Max.)1926/1777 MB/s
External DRAM CacheYes
Operating Temp.WT: -40°C ~ 85°C, NT: 0°C~70°C
Dimension (LxWxH)80.0x22.0x3.8mm
Warranty3 Years (Limited)
Vibration (Operating)20G Peak, 7 ~ 2000Hz
Power ShieldSupport
Write Protection-
