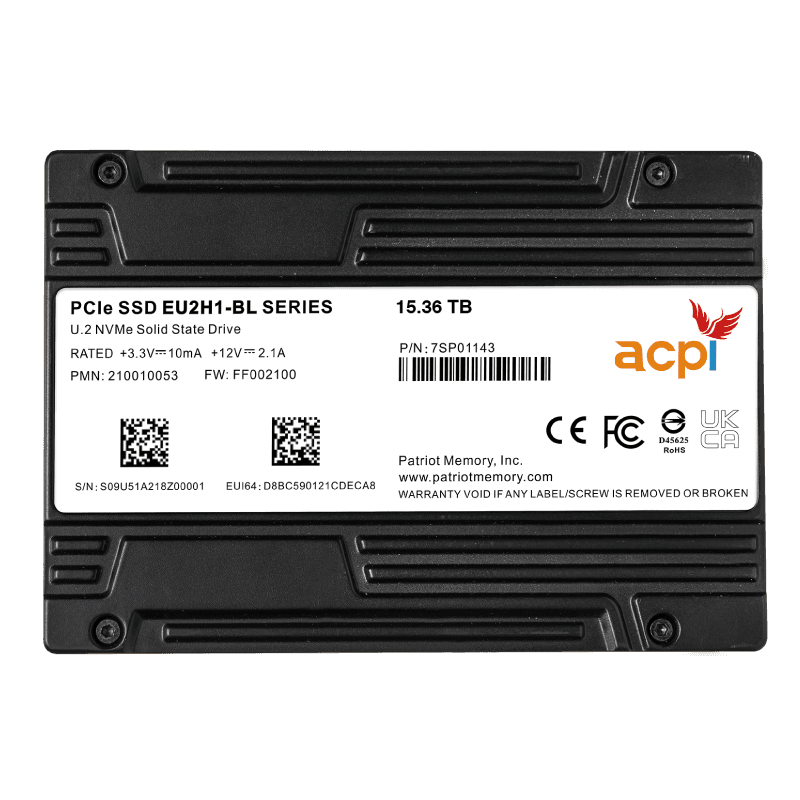

EU2H1-BL
EU2H1-BL
Features
- PCle Gen4 (16Gb/s) x4 lane
- NVMe 1.4a register interface and sanitize command supported
- Flash Raid 2.0, supporting multiple die failure without affecting service and performance
- Advanced power loss protection
- Enterprise features, end to end data protection, VSS, Multi namespace, NVMe Ml, etc.
- Multi-level adjustable power consumption
Specifications
NAND Flash Type3D eTLC
InterfacePCI Express Gen4 x4
Connector TypeU.2
Capacity1.92TB ~ 15.36TB
Bytes per Sector512 Byte
Sequential R/W Performance (Max.)7400/6400 MB/s
Operating Temp.NT: 0°C~70°C
Dimension (LxWxH)100.2x69.85x14.8mm
Warranty3 Years (Limited)
Vibration (Operating)2.17 Grms peak, 5 ~ 700Hz
